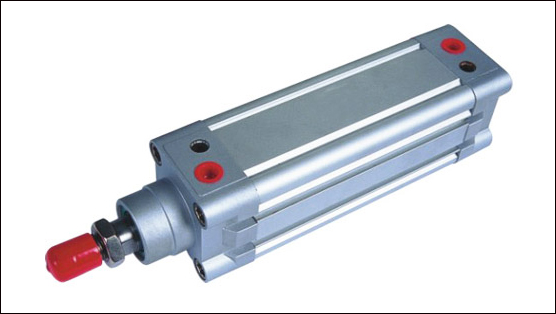

AIR Cylinde (Poppet Type - S-Series)
Features

• According to ISO 15552 & VDMA 24562
• Cylinder tube of extruded profile aluminium
• Cushioning adjustable at both ends, high energy absorption with PU
• Lubrication not necessary (maintain once started oil mist lubrication)
• Compressed air dried to a pressure dew point 30c - 50c admissible
• Operating medium: Compressed air, filtered to minimum 50┬Ám
• Operating pressure range 1-10 bar
• Operating Temperature range - 200c to + 700c
• Life 20,000 km, with PU Seals
• Minimum operating pressure 0.3 bar
• Speed 3 ml sec maximum
