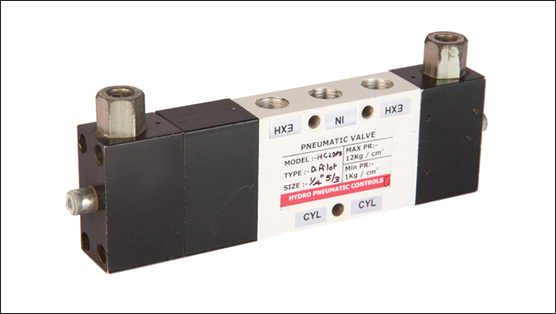

Manually Operated Pneumatic Valves (Poppet Type - S-Series)

Size : 1/4" to 1" BSP
Type : 5/2way
offered in 3/8"&3/4" Basic

Salient Features

* Robust design
* High flow Valves
* Long Life of seals
* Ideal for adverse air conditions

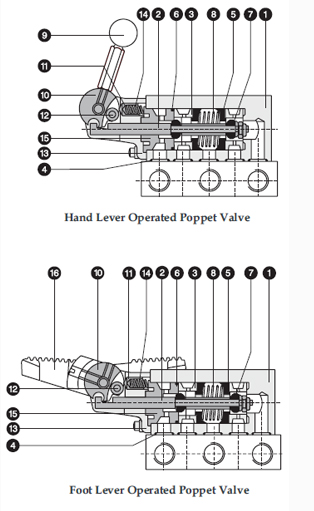

No.

Part List
Description

Qty.







Hand Level Optd.

Foot Lever Optd.

1

Valve

1

1

2

Poppet and piston assly.

1

1

3

Spool

2

2

4

‘O’ ring for sub base plate

5

5

5

Inlet seals

2

2

6

‘O’ ring for retainer

1

1

7

Outlet seals

2

2

8

Spring (Body)

1

1

9

Hand lever assembly

1

-

10

Disc

1

1

11

Detent

1

1

12

Roller

1

1

13

Bracket

1

1

14

Detent spring

1

1

15

Retainer

1
