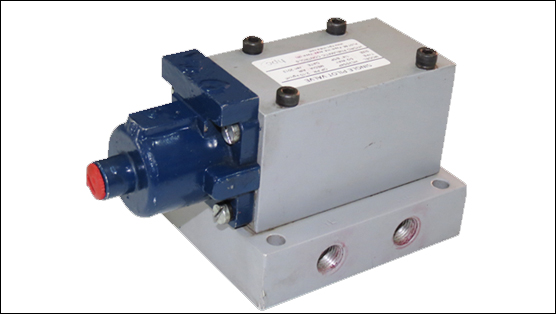

Pilot Operated Pneumatic Valves- (Poppet Type - S-Series)

Size: 1/4" to 1" BSP Type: 5/2way
offered in 3/8"&3/4" Basic

Salient Features :
* Robust design
* High flow Valves
* Long Life of seals
* Ideal for adverse air conditions



No.

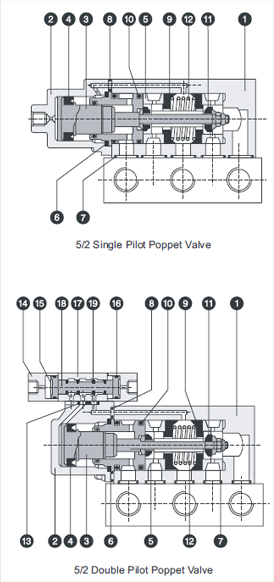

Part List
Description

Qty.







Hand Level Optd.

Foot Lever Optd.

1

Valve body

1

1

2

Pilot housing

1

1

3

Poppet and piston assly.

1

1

4

‘U’ cup packing

1

1

5

Spool

1

1

6

Gasket for pilot housing

1

1

7

‘O’ ring
( Sub-base plate )



5

5

8

‘O’ ring ( Pilot housing )



1

1

9

Inlet seals

2

2

10

‘O’ ring ( Retainer )



3

3

11

Outlet seals

2

2

12

Spring

1

1

13

‘O’ ring ( Pilot valve )

-

- 2

14

Pilot housing
( Exel valve )

-

- 2

15

Piston

-

- 2

16

Piston seal

-

- 2

17

Body ( Pilot valve )

-

- 1

18

Spool ( Pilot valve )



1

19

Dancing seals



4


• Seal kit consists of items 4, 6, 7, 8, 9, 10 & 11 for single pilot valve.
• Seal kit consists of items 4, 6, 7, 8, 9, 10, 11, 13, 16 & ( 17 + 19 ) for double pilot valve.
