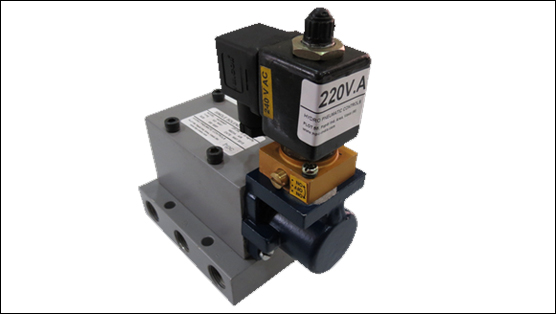

Manually Operated Pneumatic Valves (Poppet Type - S-Series)

Size: 1/4" to 1" BSP
Type: 5/2way
offered in 3/8"&3/4" Basic

Salient Features :
* Robust design
* High flow Valves
* Long Life of seals
* Ideal for adverse air conditions

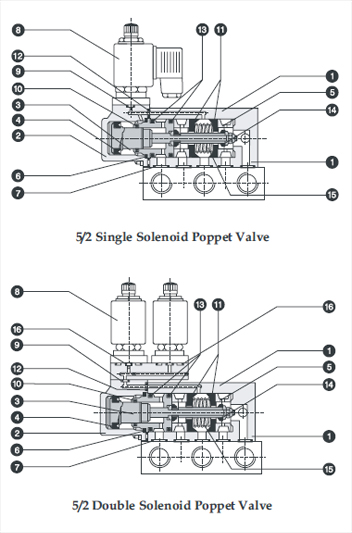

Part List
No.
Description
Qty.



Single Sol.

Double
Sol.



1

Valve body

1

1

2

Pilot housing

1

1

3

Poppet and piston assly.

1

1

4

‘U’ cup packing

1

1

5

Spool

1

1

6

Gasket

1

1

7

‘O’ ring
( sub base plate )

5

5

8

Coil assembly

1

2

9

‘O’ ring
( solenoid housing )

1

2

10

‘O’ ring
( poppet assly. )

1

1

11

Inlet seals

2

2

12

‘O’ ring
( pilot housing )

1

1

13

‘O’ ring ( retainer )

2

2

14

Outlet seals

2

2

15

Spring

1

1

16

‘O’ ring
( Double sol. housing )

-

4

Seal kit consists of items 4, 6, 7, 9, 10, 11, 12, 13 &14 for single solenoid valve.
Seal kit consists of items 4, 6, 7, 9, 10, 11, 12, 13, 14 &16 for double solenoid valve.
